Custom Slurry Hoses

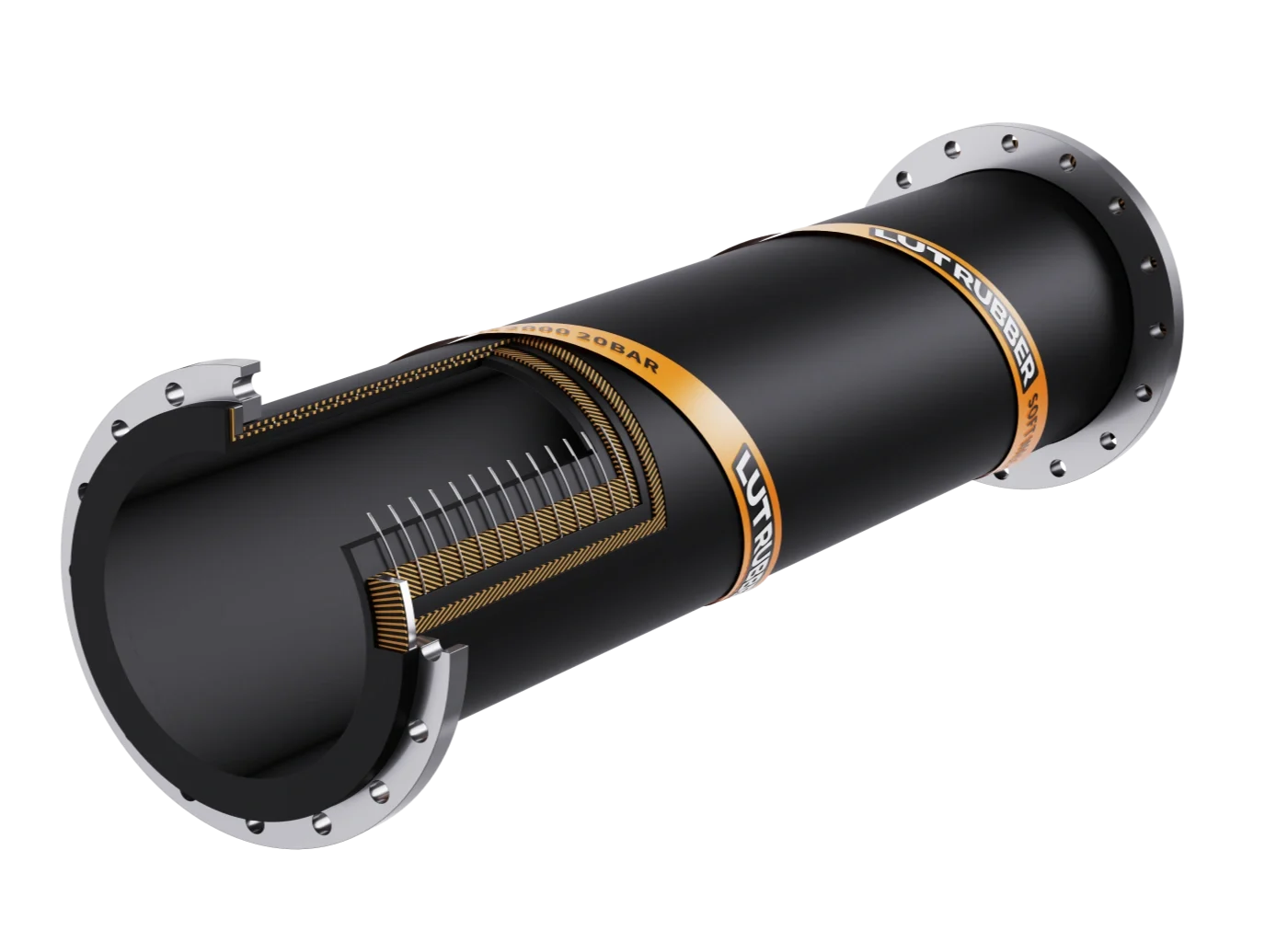

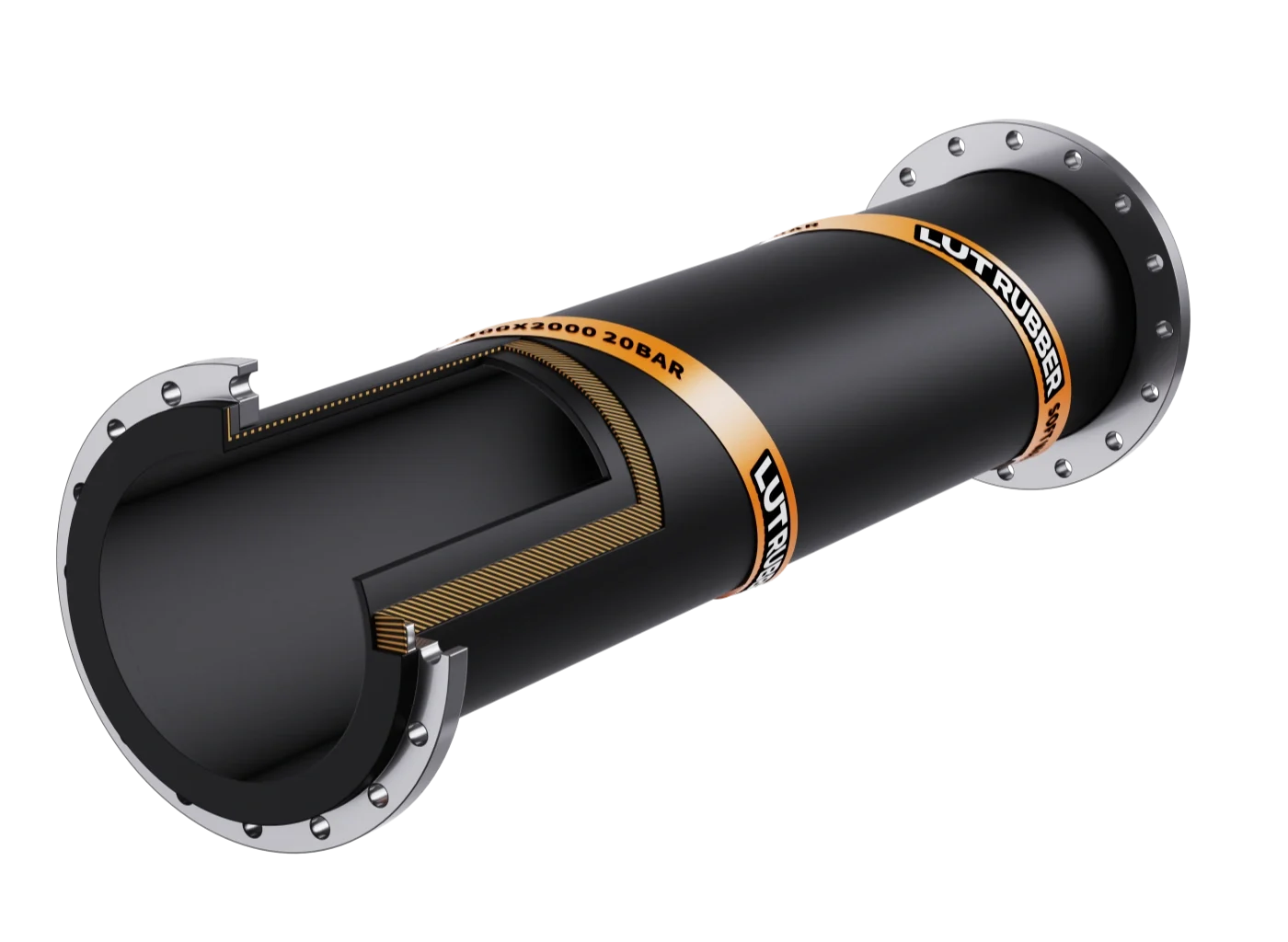

For applications including hard wall suction and discharge hose, soft wall dishcarge hose in slurry pipe line, and specialty trunnion hose for suction cutter dredge. In addition to the high-wear-resistance rubber elastic inner liner, the ceramic tile inner liner can provide superior wear resistance.Expertly crafted to transfer of abrasive slurries, mineral processing.plants, tailings lines, sand and gravel. Other applications also available on engineering.

Features:

▪ Ideal for abrasive or slurry services

▪ Maintains a smooth, continuous interior bore

▪ Minimizes turbulence & prevents solid accumulation

Benefits:

▪ Prevents Clogging – Ideal for slurries and wastes

▪ Resists Abrasion – Smooth bore extends service life

▪ Controls Movement – for specific piping stresses

Technical Specifications

Pressure Rating
Hose Size	DN50-1500
Hose Lengths	Up to 12m
	-100 to 5000kPa
	Higher on request
End Connections
	sleeve
	Flanged (fixed/swivel)rubber-lined/unlined with /without spigot
	Double flanged
	Grooved (roll or cut)
	Threaded,Butt weld,Custom
Flange Types	ASME, BS, SABS, JIS, DIN, custom
Groove Types	AWWA C606 OGS, Victaulic AGS
Thread Types	BSP, NPT, API, premium, custom
Safety Factor	4:1

Material Specifications

Inner Liner	Abrasion resistant elastomer
	Neoprene, SBR, or buty

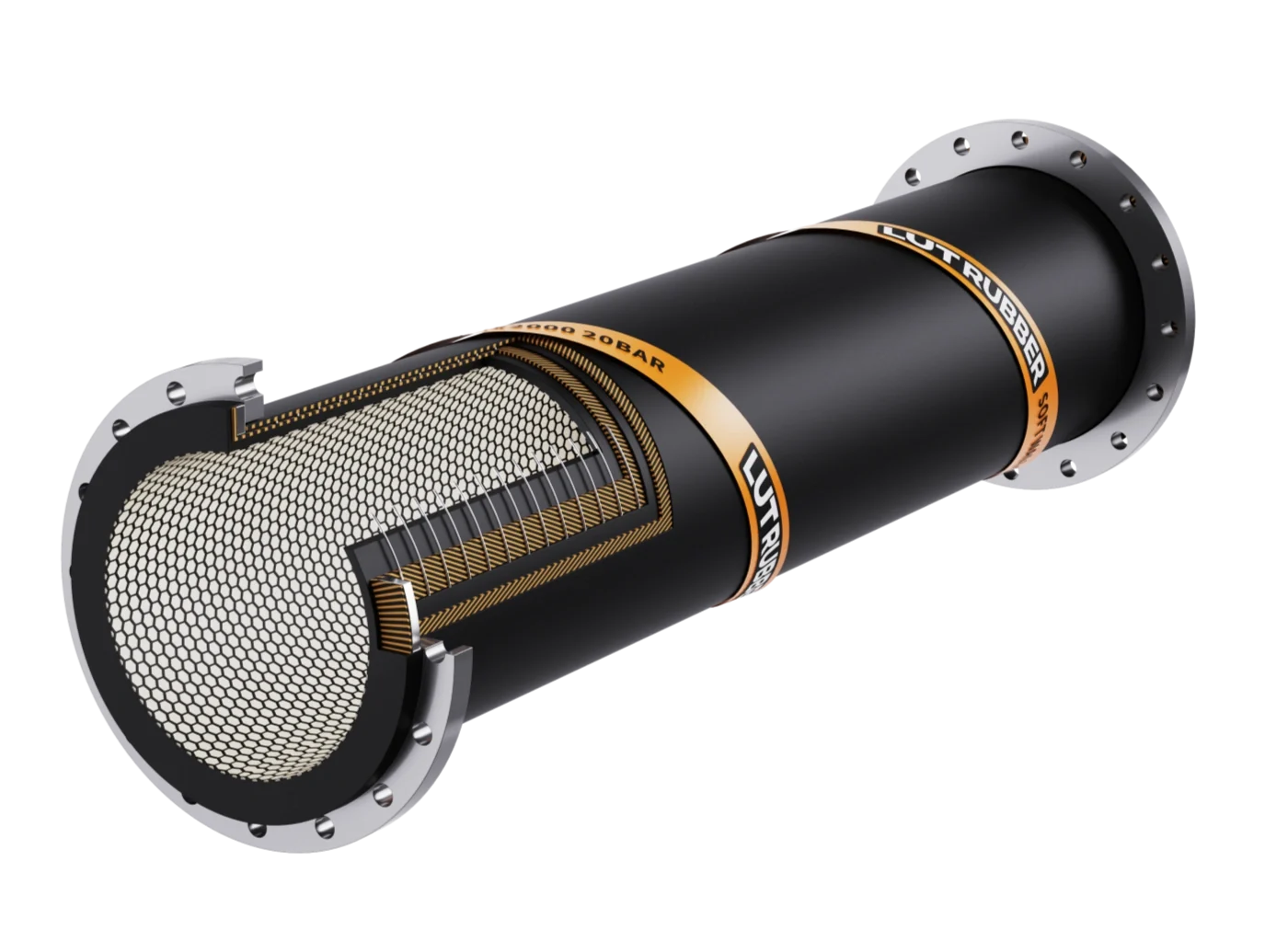

	high alumina ceramic
Reinforcement	Cord and spiral wire
Outer Cover	UV, ozone, and abrasion-resistant rubber
End Connections	Carbon steel (painted, galvanised, custom)
	Stainless steel (SS304, SS316)
	Exotic alloy

Standard Properties

Hose Size			Liner Thickness		Vacuum Rating	Working Pressure		Min Bend Radius		safety factor
Hose Size			Std	Max	Vacuum Rating	Std	Max	Min Bend Radius		safety factor
DN	in	mm	mm	mm	%	kPa	kPa	m	x Dia	ratio
100	4	102	6	12	100	1000	5000	0.8	8	4:1
150	6	152	6	12	100	1000	5000	1.2	8	4:1
200	8	203	6	12	100	1000	5000	1.6	8	4:1
250	10	250	9	15	100	1000	5000	2	8	4:1
300	12	300	9	19	100	1000	5000	2.4	8	4:1
350	14	350	9	19	100	1000	5000	2.8	8	4:1
400	16	400	12	19	100	1000	5000	3.2	8	4:1
450	18	450	12	19	100	1000	5000	4.5	10	4:1
500	20	500	12	19	100	1000	5000	5	10	4:1
550	22	550	12	19	100	1000	5000	5.5	10	4:1
600	24	600	12	19	100	1000	5000	6	10	4:1
650	26	650	15	19	100	700	4000	7.8	12	4:1
700	28	700	15	19	100	700	4000	8.4	12	4:1
750	30	750	15	19	100	700	4000	9	12	4:1
800	32	800	15	25	100	700	3000	9.6	12	4:1
900	36	900	19	25	100	700	3000	10.8	12	4:1
1000	40	1000	19	30	100	700	3000	12	12	4:1
1100	44	1100	19	30	100	700	2500	13.2	12	4:1
1200	48	1200	19	32	100	700	2500	14.4	12	4:1
1300	42	1300	19	40	100	700	2500	15.6	12	4:1
1400	46	1400	19	40	100	700	2500	16.8	12	4:1
1500	50	1500	19	40	100	700	2500	18	12	4:1

Customisable size available in non-standard specifications on request.

Features:

▪ Ideal for abrasive or slurry services

▪ Maintains a smooth, continuous interior bore

▪ Minimizes turbulence & prevents solid accumulation

Benefits:

▪ Prevents Clogging – Ideal for slurries and wastes

▪ Resists Abrasion – Smooth bore extends service life

▪ Controls Movement – for specific piping stresses

Technical Specifications

Types
Joint Diameter	DN50-1500
Joint Lengths	As request
	single arch
	multi arches
	sleeve
	reducer taper
Arch Types	filled, open
Shapes	round, rectangular
End Connections	sleeve
	full face integral flange
	external flanged retaining rings
	Floating Flange
Flange Drillings	ASME, BS, SABS, JIS, DIN, custom
Pressure Rating	-100 to 5000kPa
Safety Factor	4:1
Temperature Rating	-30°C to +75°C

Material Specifications

Inner Liner	Abrasion resistant elastomer
reinforcement	fabric/cord,wire or steel ring
Outer Cover	Abrasion and weather resistant elastomer
End Connections	sleeve
	full face integral flange
	external flanged retaining rings
	Floating Flange

Standard Properties

Size			Liner Thickness		Working Pressure		Face-to-Face Length		safety factor
Size			Std	Max	Std	Max	Min		safety factor
DN	in	mm	mm	mm	kPa	kPa	in	mm	ratio
100	4	102	6	12	1000	5000	6	150	4:1
150	6	152	6	12	1000	5000	6	150	4:1
200	8	203	6	12	1000	5000	6	150	4:1
250	10	250	9	15	1000	5000	8	200	4:1
300	12	300	9	19	1000	5000	8	200	4:1
350	14	350	9	19	1000	5000	8	200	4:1
400	16	400	12	19	1000	5000	8	200	4:1
450	18	450	12	19	1000	5000	8	200	4:1
500	20	500	12	19	1000	5000	8	200	4:1
550	22	550	12	19	1000	5000	10	250	4:1
600	24	600	12	19	1000	5000	10	250	4:1
650	26	650	15	19	700	4000	10	250	4:1
700	28	700	15	19	700	4000	10	250	4:1
750	30	750	15	19	700	4000	10	250	4:1
800	32	800	15	25	700	3000	10	250	4:1
900	36	900	19	25	100	3000	10	250	4:1
1000	40	1000	19	30	700	3000	10	250	4:1
1100	44	1100	19	30	700	2500	12	300	4:1
1200	48	1200	19	32	700	2500	12	300	4:1
1300	42	1300	19	40	700	2500	12	300	4:1
1400	46	1400	19	40	700	2500	12	300	4:1
1500	50	1500	19	40	700	2500	12	300	4:1

Customisable size available in non-standard specifications on request.

Features:

▪ Ideal for abrasive or slurry services

▪ Maintains a smooth, continuous interior bore

▪ Minimizes turbulence & prevents solid accumulation

Benefits:

▪ Prevents Clogging – Ideal for slurries and wastes

▪ Resists Abrasion – Smooth bore extends service life

▪ Controls Movement – for specific piping stresses

Technical Specifications

Diameter	DN50-1500
Lengths	As request
End Connections	full face integral flange
Flange Drillings	ASME, BS, SABS, JIS, DIN, custom
Pressure Rating	-100 to 5000kPa
Safety Factor	4:1
Temperature Rating	-30°C to +75°C

Material Specifications

End Connections
Inner Liner	Abrasion resistant elastomer
reinforcement	fabric/cord and steel ring
Outer Cover	Abrasion and weather resistant elastomer
	full face integral flange

Standard Properties

Joint Size			Liner Thickness		Vacuum Rating	Working Pressure		Face-to-Face Length		safety factor
Joint Size			Std	Max	Vacuum Rating	Std	Max	Min		safety factor
DN	in	mm	mm	mm	%	kPa	kPa	in	mm	ratio
100	4	102	6	12	100	1000	5000	6	150	4:1
150	6	152	6	12	100	1000	5000	6	150	4:1
200	8	203	6	12	100	1000	5000	6	150	4:1
250	10	250	9	15	100	1000	5000	8	200	4:1
300	12	300	9	19	100	1000	5000	8	200	4:1
350	14	350	9	19	100	1000	5000	8	200	4:1
400	16	400	12	19	100	1000	5000	8	200	4:1
450	18	450	12	19	100	1000	5000	8	200	4:1
500	20	500	12	19	100	1000	5000	8	200	4:1
550	22	550	12	19	100	1000	5000	10	250	4:1
600	24	600	12	19	100	1000	5000	10	250	4:1
650	26	650	15	19	100	700	4000	10	250	4:1
700	28	700	15	19	100	700	4000	10	250	4:1
750	30	750	15	19	100	700	4000	10	250	4:1
800	32	800	15	25	100	700	3000	10	250	4:1
900	36	900	19	25	100	700	3000	10	250	4:1
1000	40	1000	19	30	100	700	3000	10	250	4:1
1100	44	1100	19	30	100	700	2500	12	300	4:1
1200	48	1200	19	32	100	700	2500	12	300	4:1
1300	42	1300	19	40	100	700	2500	12	300	4:1
1400	46	1400	19	40	100	700	2500	12	300	4:1
1500	50	1500	19	40	100	700	2500	12	300	4:1

Customisable size available in non-standard specifications on request.

Features:

▪ Ideal for abrasive or slurry services

▪ Maintains a smooth, continuous interior bore

▪ Minimizes turbulence & prevents solid accumulation

Benefits:

▪ Prevents Clogging – Ideal for slurries and wastes

▪ Resists Abrasion – Smooth bore extends service life

▪ Controls Movement – for specific piping stresses

Technical Specifications

Types
Joint Diameter	DN50-1500
Joint Lengths	As request
	single arch
	multi arches
	sleeve
	reducer taper
Arch Types	filled, open
Shapes	round, rectangular
End Connections	sleeve
	full face integral flange
	external flanged retaining rings
	Floating Flange
Flange Drillings	ASME, BS, SABS, JIS, DIN, custom
Pressure Rating	-100 to 5000kPa
Safety Factor	4:1
Temperature Rating	-30°C to +75°C

Material Specifications

Inner Liner	Abrasion resistant elastomer
reinforcement	fabric/cord,wire or steel ring
Outer Cover	Abrasion and weather resistant elastomer
End Connections	sleeve
	full face integral flange
	external flanged retaining rings
	Floating Flange

Standard Properties

Joint Size			Liner Thickness		Vacuum Rating	Working Pressure		Face-to-Face Length		safety factor
Joint Size			Std	Max	Vacuum Rating	Std	Max	Min		safety factor
DN	in	mm	mm	mm	%	kPa	kPa	in	mm	ratio
100	4	102	6	12	100	1000	5000	6	150	4:1
150	6	152	6	12	100	1000	5000	6	150	4:1
200	8	203	6	12	100	1000	5000	6	150	4:1
250	10	250	9	15	100	1000	5000	8	200	4:1
300	12	300	9	19	100	1000	5000	8	200	4:1
350	14	350	9	19	100	1000	5000	8	200	4:1
400	16	400	12	19	100	1000	5000	8	200	4:1
450	18	450	12	19	100	1000	5000	8	200	4:1
500	20	500	12	19	100	1000	5000	8	200	4:1
550	22	550	12	19	100	1000	5000	10	250	4:1
600	24	600	12	19	100	1000	5000	10	250	4:1
650	26	650	15	19	100	700	4000	10	250	4:1
700	28	700	15	19	100	700	4000	10	250	4:1
750	30	750	15	19	100	700	4000	10	250	4:1
800	32	800	15	25	100	700	3000	10	250	4:1
900	36	900	19	25	100	700	3000	10	250	4:1
1000	40	1000	19	30	100	700	3000	10	250	4:1
1100	44	1100	19	30	100	700	2500	12	300	4:1
1200	48	1200	19	32	100	700	2500	12	300	4:1
1300	42	1300	19	40	100	700	2500	12	300	4:1
1400	46	1400	19	40	100	700	2500	12	300	4:1
1500	50	1500	19	40	100	700	2500	12	300	4:1

Customisable size available in non-standard specifications on request.

Features:

▪ Versatile design allows for the hose to be cut to length on site

▪ Coupling design supports multiple flange drill patterns

▪ Reusable split cast couplings to create a reusable flange connection

Benefits:

▪ Smooth or Corrugated hose cover for suction and delivery

▪ Adaptable open ended hose design for installation flexibility

▪ Swivel slotted flange design supports multiple drill patterns

Technical Specifications

Pressure Rating
Hose Size	DN50– 600 (2–24")
Hose Lengths	Up to 12m
	-100 to 5000kPa
	Higher on request
End Connections
	Cut end
	Inbuilt flange
Flange Drill Patterns	ASME B16.5 150#
	DIN 2501 PN 10/16
	Custom
Safety Factor	4:1
Extra options	Gaskets available
Couplings Segments	two or four

Material Specifications

Inner Liner	Abrasion resistant elastomer
	Neoprene, SBR, or buty
	high alumina ceramic
Reinforcement	Cord and spiral wire
Outer Cover	UV, ozone, and abrasion-resistant rubber
Muff Couplings	High strength aluminium alloys
	Cast iron or high-grade alloy

Standard Properties - Slurry Hoses

Hose Size			Liner Thickness		Vacuum Rating	Working Pressure		Min Bend Radius		safety factor
Hose Size			Std	Max	Vacuum Rating	Std	Max	Min Bend Radius		safety factor
DN	in	mm	mm	mm	%	kPa	kPa	m	x Dia	ratio
100	4	102	6	12	100	1000	5000	0.8	8	4:1
150	6	152	6	12	100	1000	5000	1.2	8	4:1
200	8	203	6	12	100	1000	5000	1.6	8	4:1
250	10	250	9	15	100	1000	5000	2	8	4:1
300	12	300	9	19	100	1000	5000	2.4	8	4:1
350	14	350	9	19	100	1000	5000	2.8	8	4:1
400	16	400	12	19	100	1000	5000	3.2	8	4:1
450	18	450	12	19	100	1000	5000	4.5	10	4:1
500	20	500	12	19	100	1000	5000	5	10	4:1
550	22	550	12	19	100	1000	5000	5.5	10	4:1
600	24	600	12	19	100	1000	5000	6	10	4:1

Customisable size available in non-standard specifications on request.

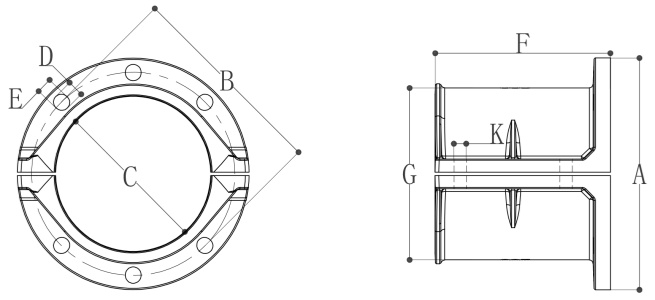

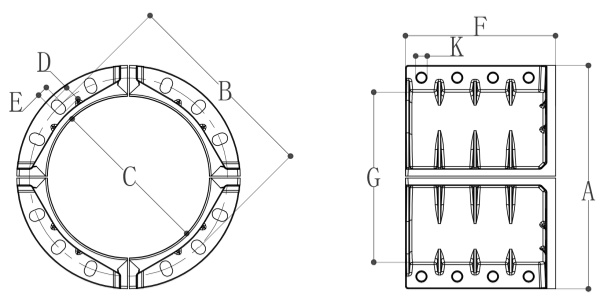

Standard Properties - Split Flange Muff Couplings

Coupling Size			Segments	Drilling Pattern						Neck Dimensions				Matches Flange
Coupling Size				OD	PCD	ID	Holes Size		Holes/Joint	Overall Length	OD	Hole Dia	Holes/Joint	DIN 2501 PN 10	ANSI B16.5 150 lbs
DN	in	mm		A	B	C	D	E	Holes/Joint	F	G	K	Holes/Joint	DIN 2501 PN 10	ANSI B16.5 150 lbs
100	4	102	2	220	185	123	25	19	3	133	143	16	2	100	4”
150	6	150	2	285	240	173	23.5	23	3	197	195	20	2	150	6”
200	8	200	2	340	297	228	24	23	3	257	252	20	2	200	8”
250	10	250	2	405	357.4	274	30	26	5	250	297	20	2	250	10”
300	12	300	2	476	417.2	330	40	25.4	5	310	355	20	3	300	12”
350*	14	350	4	510	460	382	32	27	3	350	407	20	3	350	-
350*	14	350	4	530	476.3	382	35	30	2	350	407	20	3	-	14”
400	16	400	4	596	528	432	42	29	3	400	457	24	4	400	16”
450*	18	450	4	625	565	482	36	29	4	450	507	24	4	450	-
450*	18	450	4	634	575	482	36	33	3	450	507	24	4	-	18”
500	20	500	4	695	630	536	37	32	4	500	561	24	4	500	20”
600	24	600	4	815	739.6	640	44.6	36	4	600	670	27	4	600	24”

*350/450 sizes (marked *) have separate dimensions—they don’t fit both DIN 2501 PN 10 and ANSI B16.5 150 lbs flanges. Choose per your flange standard.

Other Items We Supply

Send us a message

Free Samples
Trial Orders
Quick Quotes

Evaluate our products with small trial orders, request free samples to test quality, and benefit from rapid quotes tailored to your requirements.

Your email information will be kept strictly confidential and our business staff will ensure that your private information is absolutely safe!

ASK FOR QUOTE

REPLY WITHIN 24 HOURS

Custom Slurry Hoses

Features:

Benefits:

Technical Specifications

Material Specifications

Standard Properties

Features:

Benefits:

Technical Specifications

Material Specifications

Standard Properties

Features:

Benefits:

Technical Specifications

Material Specifications

Standard Properties

Features:

Benefits:

Technical Specifications

Material Specifications

Standard Properties

Features:

Benefits:

Technical Specifications

Material Specifications

Standard Properties - Slurry Hoses

Standard Properties - Split Flange Muff Couplings

Other Items We Supply

Send us a message

Free Samples
Trial Orders
Quick Quotes

ASK FOR QUOTE

We Supply

Support

Free Technical Resources

Custom Slurry Hoses

Features:

Benefits:

Technical Specifications

Material Specifications

Standard Properties

Features:

Benefits:

Technical Specifications

Material Specifications

Standard Properties

Features:

Benefits:

Technical Specifications

Material Specifications

Standard Properties

Features:

Benefits:

Technical Specifications

Material Specifications

Standard Properties

Features:

Benefits:

Technical Specifications

Material Specifications

Standard Properties - Slurry Hoses

Standard Properties - Split Flange Muff Couplings

Other Items We Supply

Send us a message

Free Samples Trial Orders Quick Quotes

ASK FOR QUOTE

We Supply

Support

Free Technical Resources

Ask For Quote

Free Samples
Trial Orders
Quick Quotes
