sl-ceramic lined hose bend reducer

Ceramic Lined Hose, Bend & Reducer

For applications including hard wall suction and discharge hose, soft wall dishcarge hose in slurry pipe line. In addition to the high-wear-resistance rubber elastic inner liner, the ceramic tile inner liner can provide superior wear resistance.Expertly crafted to transfer of abrasive slurries, mineral processing.plants, tailings lines, sand and gravel. Other applications also available on engineering.

Features:

▪ Ideal for abrasive or slurry services

▪ Maintains a smooth, continuous interior bore

▪ Minimizes turbulence & prevents solid accumulation

Benefits:

▪ Prevents Clogging – Ideal for slurries and wastes

▪ Resists Abrasion – Smooth bore extends service life

▪ Controls Movement – for specific piping stresses

Technical Specifications

Types
Joint Diameter	DN50-1500
Joint Lengths	As request
	single arch
	multi arches
	sleeve
	reducer taper
Arch Types	filled, open
Shapes	round, rectangular
End Connections	sleeve
	full face integral flange
	external flanged retaining rings
	Floating Flange
Flange Drillings	ASME, BS, SABS, JIS, DIN, custom
Pressure Rating	-100 to 5000kPa
Safety Factor	4:1
Temperature Rating	-30°C to +75°C

Material Specifications

Inner Liner	Abrasion resistant elastomer
reinforcement	fabric/cord,wire or steel ring
Outer Cover	Abrasion and weather resistant elastomer
End Connections	sleeve
	full face integral flange
	external flanged retaining rings
	Floating Flange

Standard Properties

Joint Size			Liner Thickness		Vacuum Rating	Working Pressure		Face-to-Face Length		safety factor
Joint Size			Std	Max	Vacuum Rating	Std	Max	Min		safety factor
DN	in	mm	mm	mm	%	kPa	kPa	in	mm	ratio
100	4	102	6	12	100	1000	5000	6	150	4:1
150	6	152	6	12	100	1000	5000	6	150	4:1
200	8	203	6	12	100	1000	5000	6	150	4:1
250	10	250	9	15	100	1000	5000	8	200	4:1
300	12	300	9	19	100	1000	5000	8	200	4:1
350	14	350	9	19	100	1000	5000	8	200	4:1
400	16	400	12	19	100	1000	5000	8	200	4:1
450	18	450	12	19	100	1000	5000	8	200	4:1
500	20	500	12	19	100	1000	5000	8	200	4:1
550	22	550	12	19	100	1000	5000	10	250	4:1
600	24	600	12	19	100	1000	5000	10	250	4:1
650	26	650	15	19	100	700	4000	10	250	4:1
700	28	700	15	19	100	700	4000	10	250	4:1
750	30	750	15	19	100	700	4000	10	250	4:1
800	32	800	15	25	100	700	3000	10	250	4:1
900	36	900	19	25	100	700	3000	10	250	4:1
1000	40	1000	19	30	100	700	3000	10	250	4:1
1100	44	1100	19	30	100	700	2500	12	300	4:1
1200	48	1200	19	32	100	700	2500	12	300	4:1
1300	42	1300	19	40	100	700	2500	12	300	4:1
1400	46	1400	19	40	100	700	2500	12	300	4:1
1500	50	1500	19	40	100	700	2500	12	300	4:1

Customisable size available in non-standard specifications on request.

Features:

▪ Ideal for abrasive or slurry services

▪ Maintains a smooth, continuous interior bore

▪ Minimizes turbulence & prevents solid accumulation

Benefits:

▪ Prevents Clogging – Ideal for slurries and wastes

▪ Resists Abrasion – Smooth bore extends service life

▪ Controls Movement – for specific piping stresses

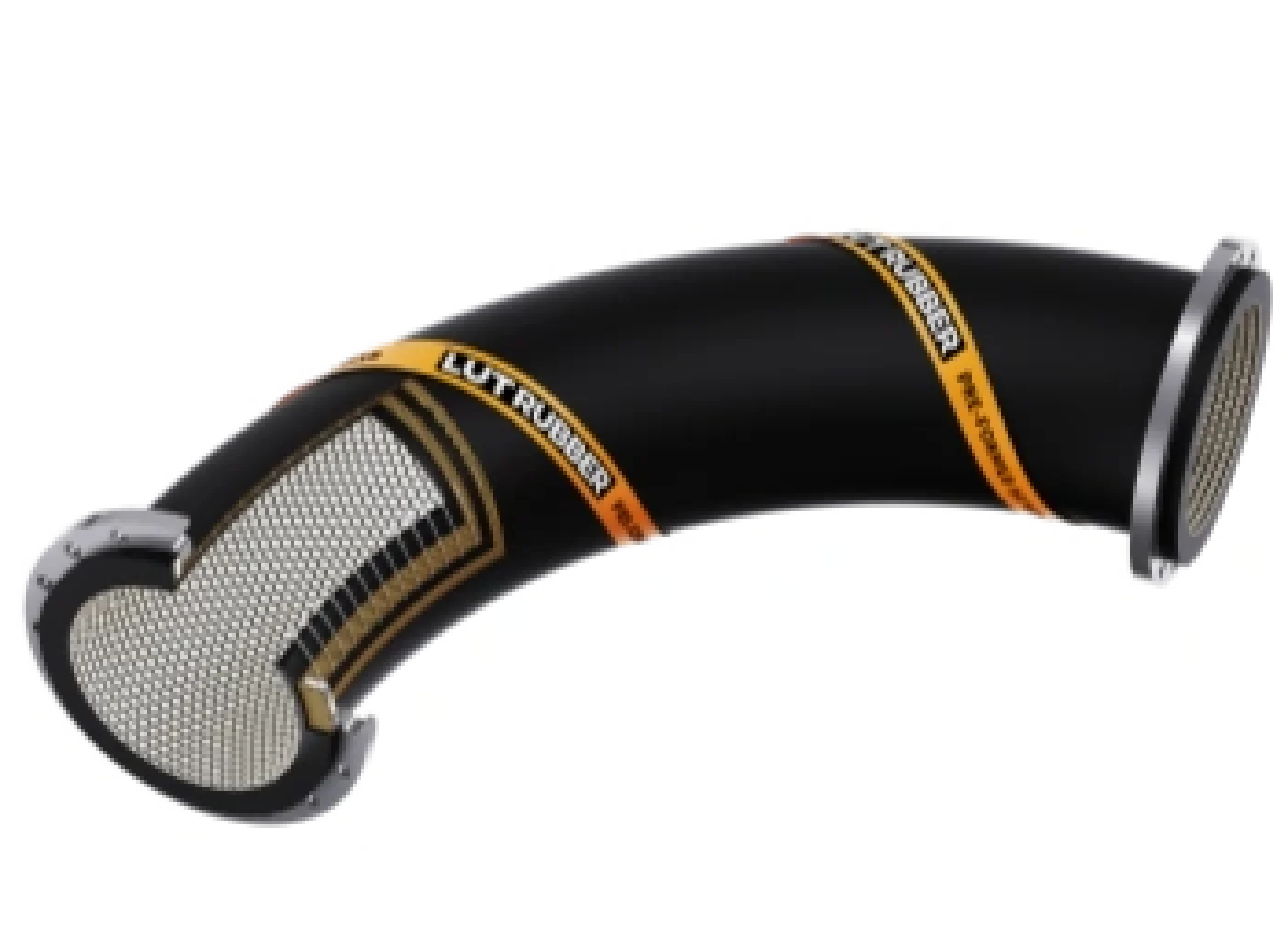

Technical Specifications

Bend Diameter	DN50-1500
Bend Angel	As request
Pressure rating	0 to +5000kPa (0 to +725psi)
Pressure rating	Higher on request
End Connections	Plain end
End Connections	Flanged (fixed/swivel) with /without spigot
Flange Drillings	ASME, BS, SABS, JIS, DIN, custom
Safety Factor	4:1
Temperature Rating	-30°C to +75°C

Material Specifications


Inner Liner	high alumina ceramic	natural rubber
	Neoprene, SBR, or buty
reinforcement	Synthetic fabric and wire helix
Outer Cover	UV, ozone, and abrasion-resistant rubber
End Connections	Carbon steel (painted, galvanised, custom)
	Stainless steel (SS304, SS316)
	Exotic alloy

Standard Properties

Bend Size			Liner Thickness		Vacuum Rating	Working Pressure		Standard Centreline Radius				Straight Tangent Length (3/5D)			safety factor
Bend Size			Std	Max	Vacuum Rating	Std	Max	1D	1.5D	3D	5D	Min	Std	short side Max	safety factor
DN	in	mm	mm	mm	%	kPa	kPa	mm	mm	mm	mm	mm	mm	mm	ratio
100	4	102	6	12	100	1000	5000	100	150	300	500	0	100	150	4:1
150	6	152	6	12	100	1000	5000	150	225	450	450	0	100	150	4:1
200	8	203	6	12	100	1000	5000	200	300	600	1000	0	100	150	4:1
250	10	250	9	15	100	1000	5000	250	375	750	1250	0	150	150	4:1
300	12	300	9	19	100	1000	5000	300	450	900	1500	0	100	150	4:1
350	14	350	9	19	100	1000	5000	350	525	1050	1750	0	100	150	4:1
400	16	400	12	19	100	1000	5000	400	600	1200	2000	0	100	150	4:1
450	18	450	12	19	100	1000	5000	450	675	1350	2250	0	150	200	4:1
500	20	500	12	19	100	1000	5000	500	750	1500	2000	0	150	200	4:1
550	22	550	12	19	100	1000	5000	550	825	1650	2750	0	150	200	4:1
600	24	600	12	19	100	1000	5000	600	900	1800	3000	0	150	200	4:1
650	26	650	15	19	100	700	4000	650	975	1950	3250	0	200	250	4:1
700	28	700	15	19	100	700	4000	700	1050	2100	3500	0	200	250	4:1
750	30	750	15	19	100	700	4000	750	1125	2250	3750	0	200	250	4:1
800	32	800	15	25	100	700	3000	800	1200	2400	4000	0	200	250	4:1
900	36	900	19	25	100	700	3000	900	1350	2700	4500	0	200	250	4:1
1000	40	1000	19	30	100	700	3000	1000	1500	3000	5000	0	200	250	4:1
1100	44	1100	19	30	100	700	2500	1100	1650	3300	5500	0	200	250	4:1
1200	48	1200	19	32	100	700	2500	1200	1800	3600	6000	0	200	250	4:1
1300	42	1300	19	40	100	700	2500	1300	1950	3900	6500	0	200	250	4:1
1400	46	1400	19	40	100	700	2500	1400	2100	4200	7000	0	200	250	4:1
1500	50	1500	19	40	100	700	2500	1500	2250	4500	7500	0	200	250	4:1

Customisable size available in non-standard specifications on request.

Tangent length is the straight section at end of each bend measured from the start of the straight section to the face of the flange.

Short side max refers to the longest the straight can be on the shorter tangent of a bend with a 1.5D radius.

The other tangent can be up to 3m.

Features:

▪ Ideal for abrasive or slurry services

▪ Maintains a smooth, continuous interior bore

▪ Minimizes turbulence & prevents solid accumulation

Benefits:

▪ Prevents Clogging – Ideal for slurries and wastes

▪ Resists Abrasion – Smooth bore extends service life

▪ Controls Movement – for specific piping stresses

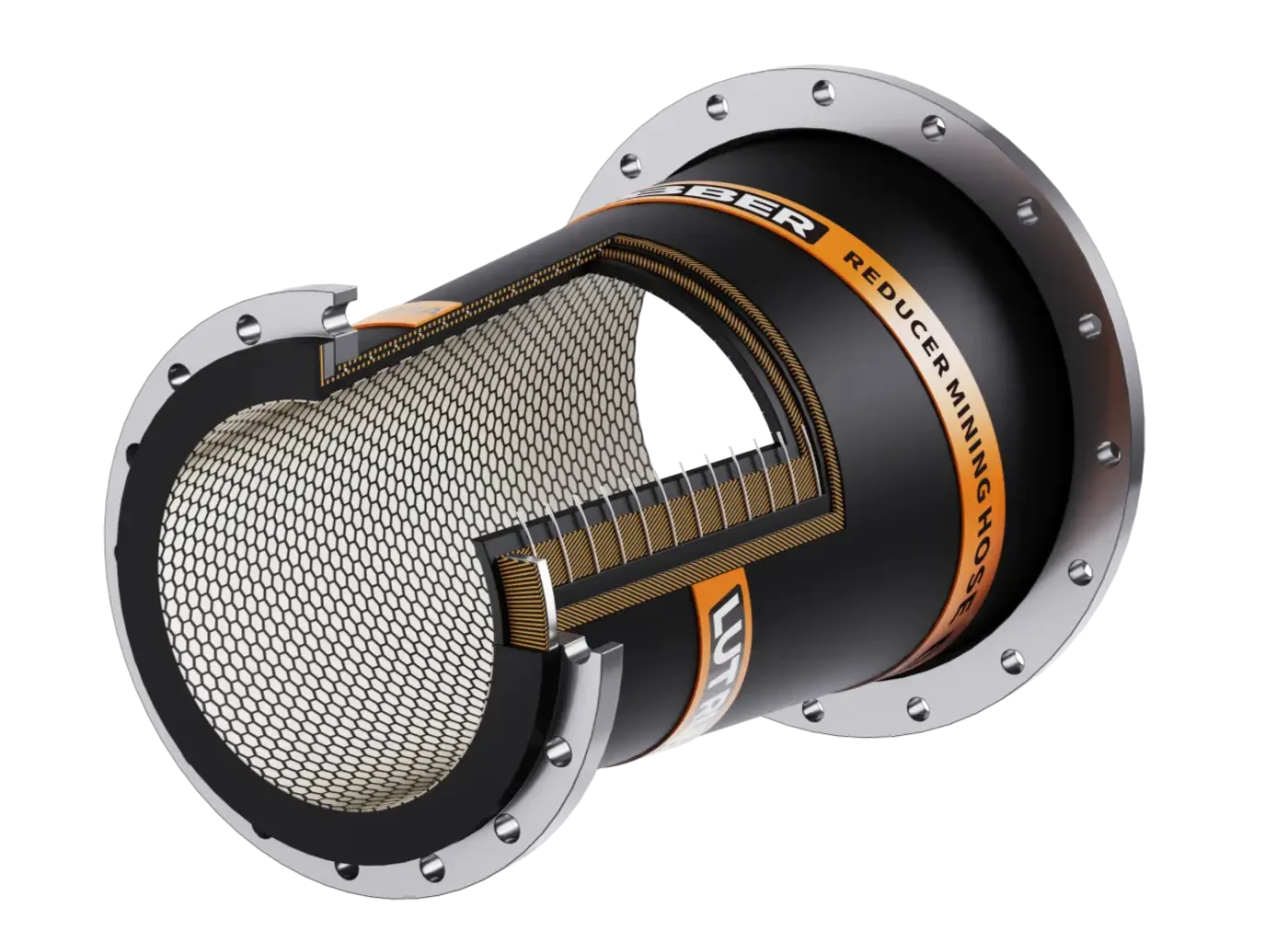

Technical Specifications

End Connections
Reducer Diameter	DN50-1500
Overall Lengths	As request
Types	Concentric/Eccentric
Temperature rating	-30°C to +75°C
	Flanged (fixed or swivel)
	Flanged full spigot (fixed or swivel)
	Double flanged
Flange Drillings	ASME, BS, SABS, JIS, DIN, custom
Pressure Rating	-100 to 5000kPa
Safety Factor	4:1

Material Specifications

Inner Liner	high alumina ceramic
	Abrasion resistant elastomer
	Neoprene, SBR, or buty
reinforcement	fabric/cord and spiral wire
Outer Cover	Abrasion and weather resistant elastomer
End Connections	Carbon steel (painted, galvanised, custom)
	Stainless steel (SS304, SS316)
	external flanged retaining rings
	Exotic alloy

Standard Properties

Size			Liner Thickness		Vacuum Rating	Working Pressure		Face-to-Face Length			safety factor
Size			Std	Max	Vacuum Rating	Std	Max	Min	Std	Max	safety factor
DN	in	mm	mm	mm	%	kPa	kPa	mm	mm	mm	ratio
100	4	102	6	12	100	1000	5000	291	308	As Request	4:1
150	6	152	6	12	100	1000	5000	333	346	As Request	4:1
200	8	203	6	12	100	1000	5000	351	358	As Request	4:1
250	10	250	9	15	100	1000	5000	380	404	As Request	4:1
300	12	300	9	19	100	1000	5000	409	461	As Request	4:1
350	14	350	9	19	100	1000	5000	542	604	As Request	4:1
400	16	400	12	19	100	1000	5000	579	662	As Request	4:1
450	18	450	12	19	100	1000	5000	620	687	As Request	4:1
500	20	500	12	19	100	1000	5000	768	814	As Request	4:1
550	22	550	12	19	100	1000	5000	771	814	As Request	4:1
600	24	600	12	19	100	1000	5000	778	814	As Request	4:1
650	26	650	15	19	100	700	4000	916	916	As Request	4:1
700	28	700	15	19	100	700	4000	924	1016	As Request	4:1
750	30	750	15	19	100	700	4000	930	1016	As Request	4:1
800	32	800	15	25	100	700	3000	943	1016	As Request	4:1
900	36	900	19	25	100	700	3000	962	1016	As Request	4:1
1000	40	1000	19	30	100	700	3000	962	1116	As Request	4:1
1100	44	1100	19	30	100	700	2500	984	1116	As Request	4:1
1200	48	1200	19	32	100	700	2500	997	1116	As Request	4:1
1300	42	1300	19	40	100	700	2500	1013	1216	As Request	4:1
1400	46	1400	19	40	100	700	2500	1029	1216	As Request	4:1
1500	50	1500	19	40	100	700	2500	1044	1216	As Request	4:1

Customisable size available in non-standard specifications on request.

Minimum face-to-face length for a hose with a swivel flange (beaded) ASME #150, standard working pressure.
